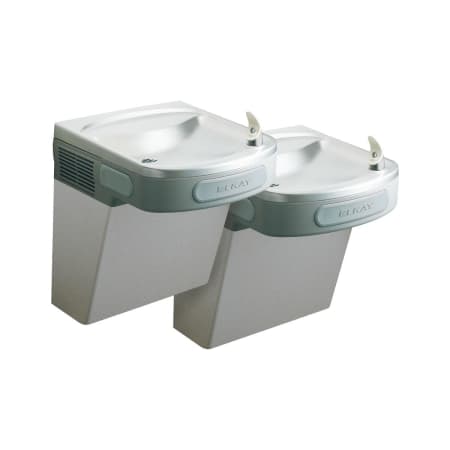

Elkay EZ 8 GPH Wall Mounted Bi-Level Drinking Fountain with Water Cooler and Cane Apron

Model: EZSTL8SC

from the EZ Collection
(5)— Write a Review
$1,734.00
Finish: Choose Finish
  • Light Gray Granite
  • Stainless Steel
  • Light Gray Granite
    Light Gray Granite
    $1,635.00
    197 In Stock
  • Stainless Steel
    Stainless Steel
    $1,734.00
    62 In Stock

Free Shipping!

62 In Stock

Product Overview

This product has additional required/recommended options. To configure, add to your cart.

  • Sink Trim
    Sink Trim Recommended
  • Part
    Part Recommended
  • Water Filter
    Water Filter Recommended
The EZ models are Elkay's most popular water cooler series. The space saving ADA compliant design meets adult or child standards when properly installed. New versatile bi-level design allows for standard high-left/low-right or alternate low-left/high-right installation.

Elkay EZSTL8C Features:

  • Attractive, contemporary design matches modern architecture
  • Electronic bubbler push bars for easy activation
  • Exclusive fastener less integrated drain reduces debris accumulation and is easy to clean

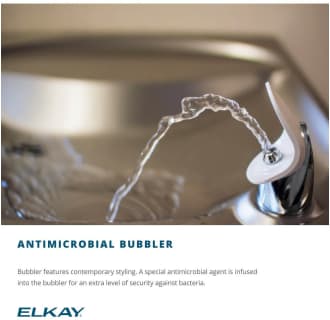

  • Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms
  • Vinyl clad finish is durable and attractive
  • Rated for indoor use

Elkay EZSTL8C Specifications:

  • Base Flow Rate (GPH): 8.0 gallons-per-hour
  • Rated Watts: 370W
  • Full Load Amps: 4.0
  • Voltage: 115V/60Hz
  • Height: 18-13/16"
  • Width: 36-3/4"
  • Depth: 19"
  • Bubbler Style: Mechanical
  • Water Activation Type: Push Bar
  • Installation Location: Indoor

This product is listed under the following manufacturer number(s):

Dimensions and Measurements

Cooling Capacity
8 GPH
Depth
19 in.
Flow Rate (GPH)
8
Flow Rate (GPM)
0.13
Gauge
18
Height
25.3125 in.
Inlet Diameter
0.375 in.
Outlet Diameter
1.5 in.
Product Weight
72 lbs.
Water Pressure (Max)
105 PSI
Water Pressure (Min)
20 PSI
Width
19 in.

Included Components

Bottle Filler Included
No
Cooling Unit
Yes

Characteristics and Features

Antimicrobial
Yes
Bi-Level
Yes
Control Type
Bar
Filtered
No
Freeze Resistant
No
Hands Free
No
Hermetically Sealed Electronics
Yes
Installation Type
Wall Mounted
Material
Stainless Steel
Number Of Basins
2
Number of Stations
2
Pet Friendly
No
Vandal Resistant
No

Electrical and Operational Information

Amperage
5
Electrical Phases
1
Frequency
60 Hertz
Voltage
115
Wattage
370

Warranty and Product Information

ADA
Yes
Approved for Commercial Use
Yes
ASME Code
A112.19.3
Certifications
NSF, ANSI, ASME, UL
Collection
EZ
Lead Leaching Certified NSF/ANSI 61
Yes
Location Rating
Dry Location
Made in America
Yes
Manufacturer Warranty
1 Year Limited
